Solution for classification, dust removal, or simple safety screening
Lessine’s vibrating screens are designed to meet all your dust removal, classification, or safety screening needs, whether for dry or liquid products. Depending on the product characteristics, it guarantees screening fineness from 30 mm to 25 µm.
Operating principle

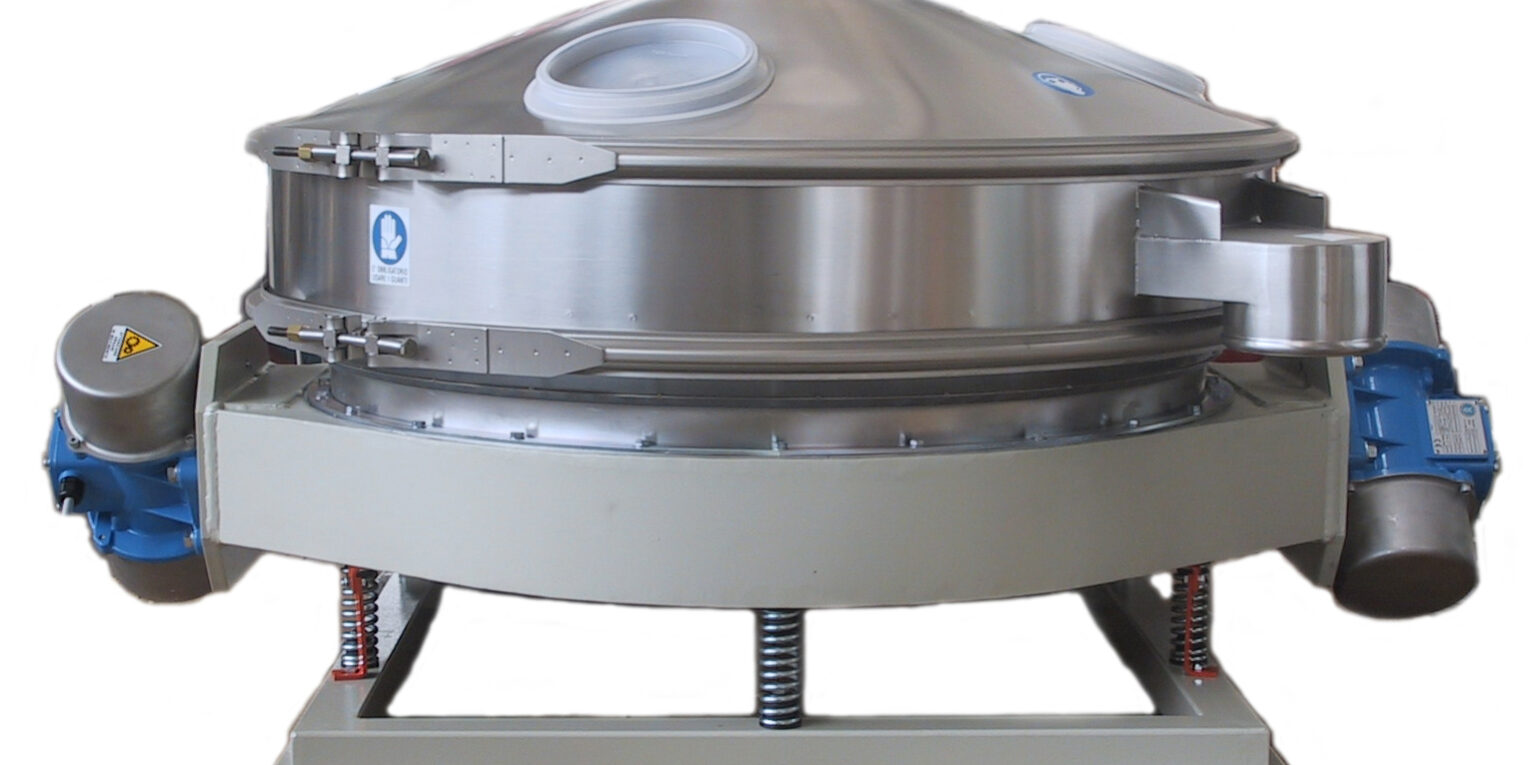

Vibrating screens generate vibrations that ensure optimal passage of the calibrated material through the screen. These vibrations are created by a motor with eccentric weights at both ends. The rotation speed, weight of the masses, and their eccentricities are adjustable parameters for each application. It can be configured on one or more stages depending on specific application requirements. This flexibility allows for the classification of different particle sizes on a single device.
A cleaning system for the screen mesh using bouncing balls, cylinders, or ultrasonic devices can be integrated into the vibrating screen in applications where material clogging or blinding is an issue.
Applications
The vibrating screen is particularly effective for separating fine dry or liquid particles in the following sectors :
- Circular economy and recovery
- Minerals and ores
- Fertilizers, chemicals, fine chemicals
- Food and pharmaceuticals
- Metals and precious metals
Advantages
- Ideal for classification, safety screening, or dust removal
- Very high hourly filtration rate
- Dust/liquid tightness
- Integrated mesh cleaning system
- One or multiple stages
